Zinc Plated NACM90 Twist Link Machine / Coil Chain
Twist link machine chain is manufactured from metal links formed with a twisted configuration. Unlike conventional straight-link chains, the twisted shape allows the chain to move and articulate more freely while maintaining a continuous chain structure.
The chain is commonly produced from carbon steel or other suitable steel grades. Depending on the application, it can be supplied with different surface finishes, such as plain, electro-galvanized, or other protective coatings.
Its combination of flexibility and mechanical strength makes twist link chain useful in applications where the chain needs to follow curved paths, move around sprockets or pulleys, or withstand repeated movement.
Key Features of Twist Link Machine Chain
1. Flexible Link Design
The twisted-link configuration allows the chain to bend and articulate easily. This makes it suitable for machinery and equipment where the chain is subject to continuous movement.
2. Durable Steel Construction
Quality steel provides good resistance to tension, abrasion, and mechanical wear. The appropriate material and heat-treatment process can be selected according to the working environment and load requirements.
3. Smooth Mechanical Movement
The special link geometry helps the chain move smoothly through equipment and around changing directions, making it useful for mechanical transmission and material-handling applications.
4. Corrosion Protection Options
For outdoor or humid environments, galvanized twist link machine chain can provide improved resistance to rust and corrosion compared with untreated steel chain.
5. Multiple Sizes Available

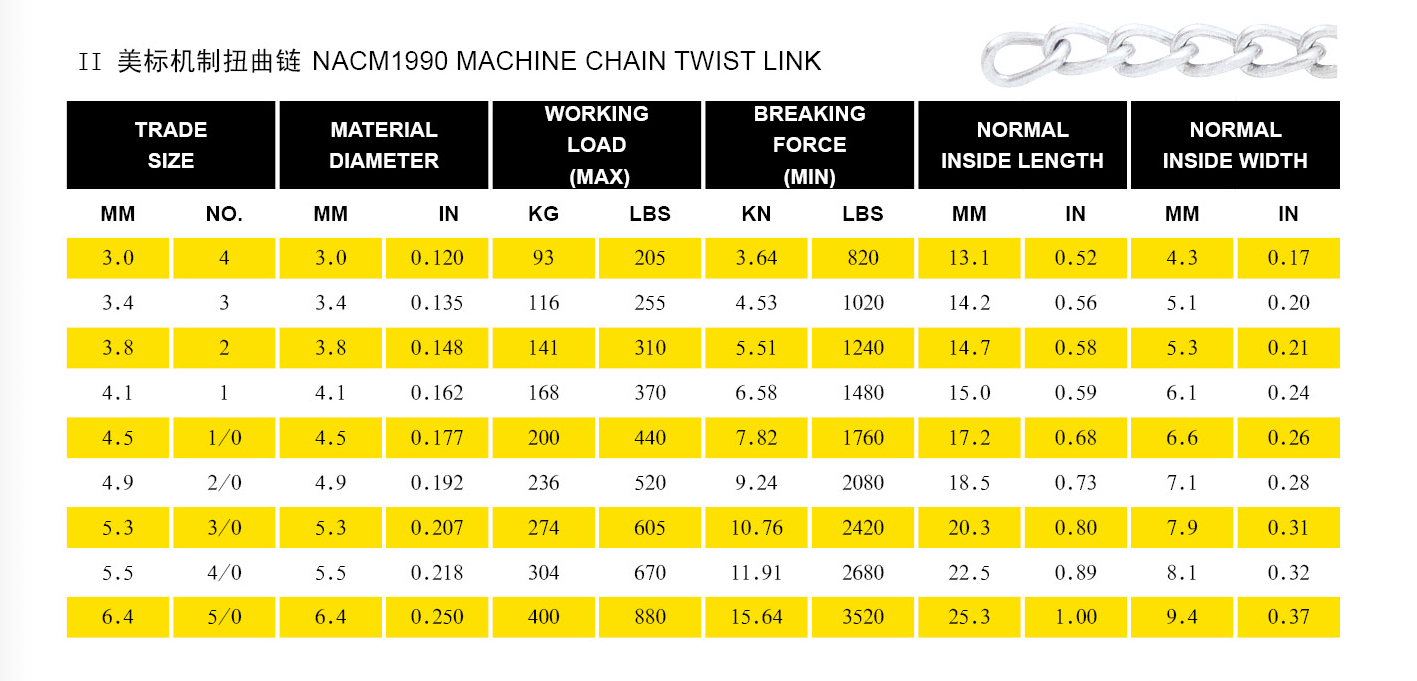

Twist link machine chain can be manufactured in different wire diameters, link dimensions, and lengths. This allows users to select a chain according to the equipment design and required working load.
Common Applications
Twist link machine chain is used across a variety of industrial and commercial applications.
Agricultural Machinery
The chain can be used in agricultural equipment where continuous movement, flexibility, and resistance to outdoor conditions are important.
Conveyors and Material Handling
Twist link chain can be incorporated into certain conveyor and material-handling systems for transporting or guiding materials.
Machinery and Equipment
Its flexible structure makes it useful for mechanical equipment where conventional rigid components may not provide sufficient articulation.
Industrial Handling Systems
The chain can also be used for general-purpose industrial handling, positioning, and equipment mechanisms where the chain size and working load are appropriate.
Model Number: WDTC
-
Cautions:
Chains must not be used in chain slings.
Never use overload.
