G120 Forged Alloy Eye Sling Hook with Latch for Lifting
A G120 Eye Sling Hook with Latch is a Grade 120 alloy steel sling hook featuring an eye at the top for connection to a chain or other compatible lifting component. The hook opening is equipped with a forged safety latch, which helps prevent the connected sling or chain from unintentionally coming out of the hook during handling.
The eye sling hook is generally used as a general-purpose hook in chain sling assemblies. Manufacturer specifications for G120 eye sling hooks identify them as general-purpose lifting hooks with forged safety latches.
The basic construction includes:
- Forged alloy steel body
- Grade 120 strength level
- Eye connection
- Hook bowl and throat
- Forged safety latch
- Latch spring and retaining components
- Protective surface finish, depending on the manufacturer
Some commercially available G120 eye sling hooks use a blue powder-coated finish for identification and corrosion protection, together with Grade 120 markings.
Key Features
Superior Grade 120 Strength
Manufactured from premium alloy steel and heat treated for maximum performance, the hook delivers outstanding mechanical properties including:
- Higher Working Load Limit (WLL)
- Excellent tensile strength
- Outstanding fatigue resistance
- Superior impact toughness
- Long service life
Compared with Grade 100 components, Grade 120 products typically provide approximately 20% greater working load capacity for the same chain diameter.
Secure Safety Latch
The spring-loaded latch helps keep the chain or lifting point properly seated inside the hook throat during lifting operations.
Benefits include:
- Prevents accidental unhooking
- Improves lifting safety
- Reduces operational risks
- Helps maintain proper load positioning
It is important to note that the latch is designed as a retaining device and should never be considered load-bearing.
The eye at the top of the hook provides a convenient connection point for compatible Grade 120 chain and lifting components.
It can be incorporated into chain sling assemblies together with appropriate connecting links, master links, or other compatible components.
Advantages of Grade 120 Hooks
Increased Working Load
Grade 120 components allow users to lift heavier loads using the same chain size.
Reduced Weight
Alternatively, users can select a smaller chain size while maintaining the required lifting capacity, resulting in:
- Lighter sling assemblies
- Easier handling
- Reduced worker fatigue
- Lower transportation costs
Improved Efficiency
Lighter lifting gear allows faster rigging, improved productivity, and easier storage.
Longer Service Life
The combination of premium alloy steel and advanced heat treatment provides excellent wear resistance, reducing maintenance and replacement costs.

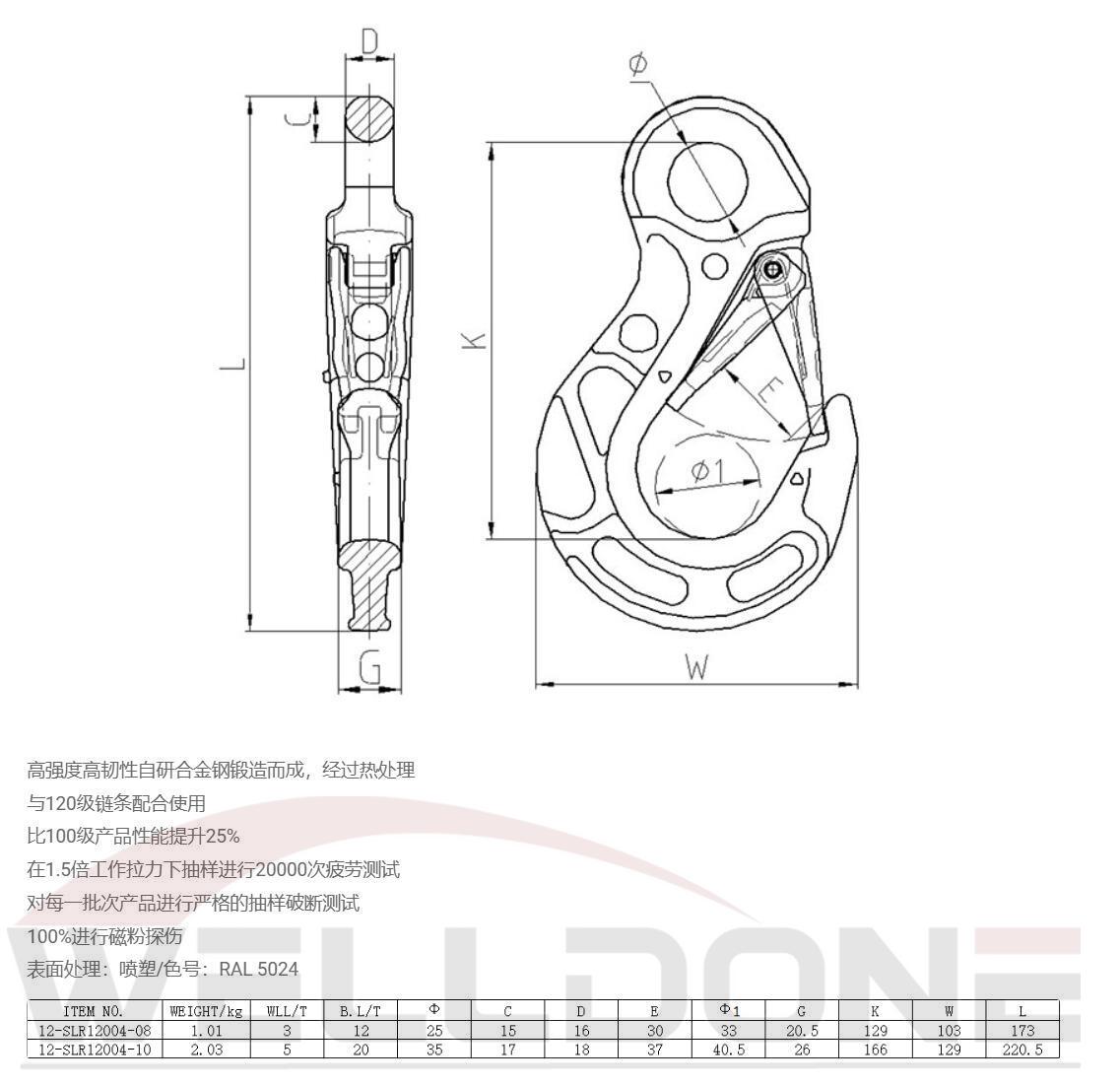

Model Number: SLR12004
-
Cautions:
Before each use, check for:
- Cracks
- Deformation
- Excessive wear
- Bent components
- Pin damage
- Corrosion
- Missing locking parts
- Illegible identification markings
