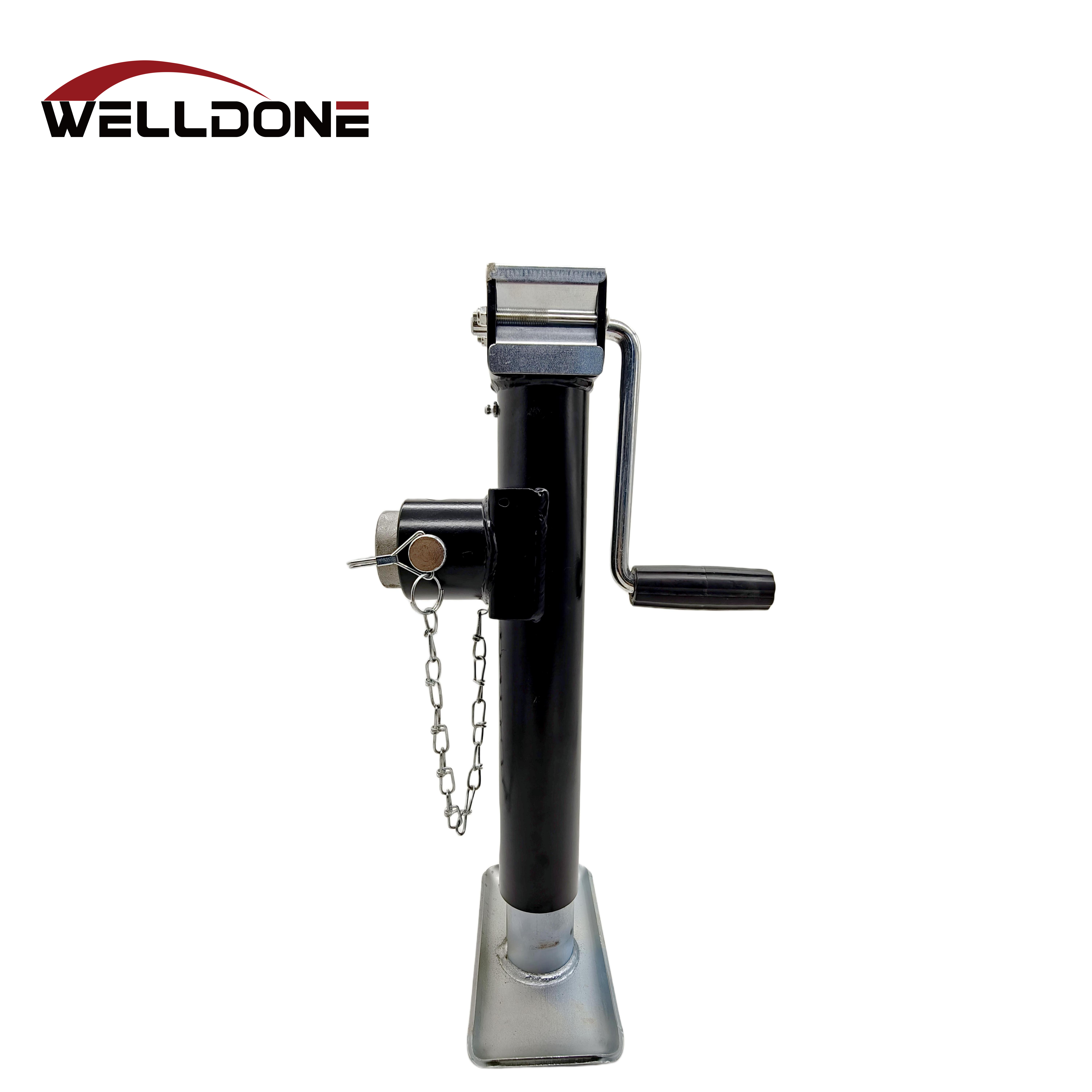

Heavy Duty Adjustable Swivel Trailer Jack Side-Wind with Footplate Weld-On Mount
A trailer jack is a mechanical lifting device mounted on the tongue or frame of a trailer. It is designed to raise and lower the trailer coupler, making it easier to connect or disconnect the trailer from a towing vehicle. Trailer jacks also provide stability when the trailer is parked and help support the trailer’s tongue weight.
Whether used on utility trailers, boat trailers, travel trailers, horse trailers, or agricultural equipment trailers, trailer jacks are indispensable components for safe and convenient trailer operation.
Key Features
-
Easy Trailer Coupling and Uncoupling
Trailer jacks allow users to quickly raise or lower the coupler to match the height of the towing vehicle.
Improved Safety
A properly rated trailer jack helps stabilize the trailer during loading, unloading, and parking.
Reduced Physical Effort
Modern side-wind and top-wind designs provide smooth operation and reduce the force required for lifting.
Enhanced Versatility
Different mounting styles and load capacities allow trailer jacks to be used across various industries and applications.
Why Use a Heavy Duty Adjustable Swivel Trailer Jack Side-Wind with Footplate Weld-On Mount?
-
1. Easy Trailer Coupling and Uncoupling
This trailer jack allows users to quickly raise or lower the trailer tongue, making it easier to connect or disconnect the trailer from a towing vehicle. The side-wind handle provides smooth operation with less effort.
2. Heavy-Duty Load Capacity
Designed for demanding applications, the heavy-duty construction provides reliable support for utility trailers, boat trailers, cargo trailers, and equipment trailers. It helps stabilize the trailer during loading, unloading, and parking.
3. Adjustable Height for Greater Versatility
The adjustable design accommodates different trailer heights and towing vehicle configurations, ensuring proper alignment and easier operation.

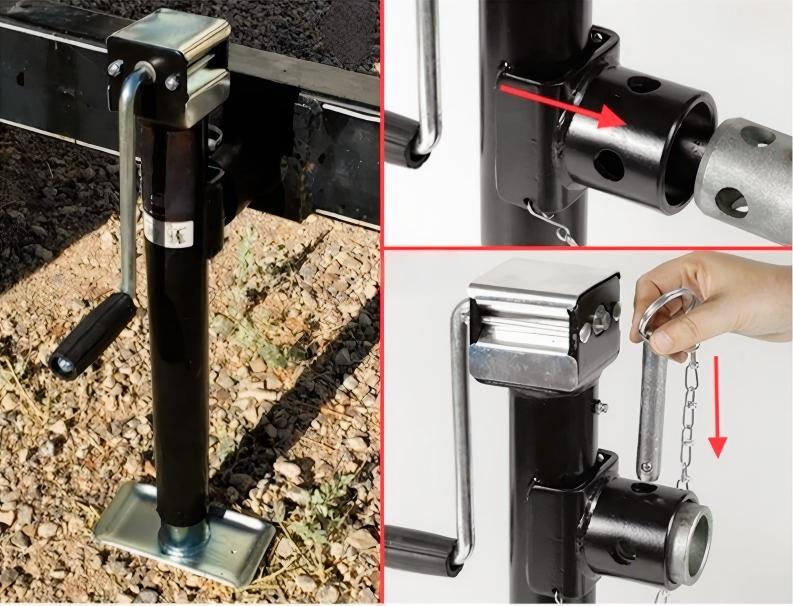

4. Swivel Design for Improved Ground Clearance
The swivel mechanism allows the jack to rotate into a horizontal position when towing, preventing contact with the road and improving ground clearance.
5. Stable Support with Footplate
The large footplate distributes weight evenly and prevents sinking into soft surfaces such as dirt, gravel, grass, or sand. This provides greater stability and safety.
6. Durable Weld-On Mount Installation
The weld-on mounting system offers a strong and permanent attachment to the trailer frame, making it ideal for heavy-duty and long-term use.
7. Corrosion-Resistant Construction
Many heavy-duty trailer jacks feature powder-coated or zinc-plated finishes that help resist rust and corrosion, extending service life in outdoor and marine environments.
8. Suitable for Multiple Trailer Types
Ideal for:
- Utility Trailers
- Boat Trailers
- Cargo Trailers
- Equipment Trailers
- Agricultural Trailers
- Landscaping Trailers

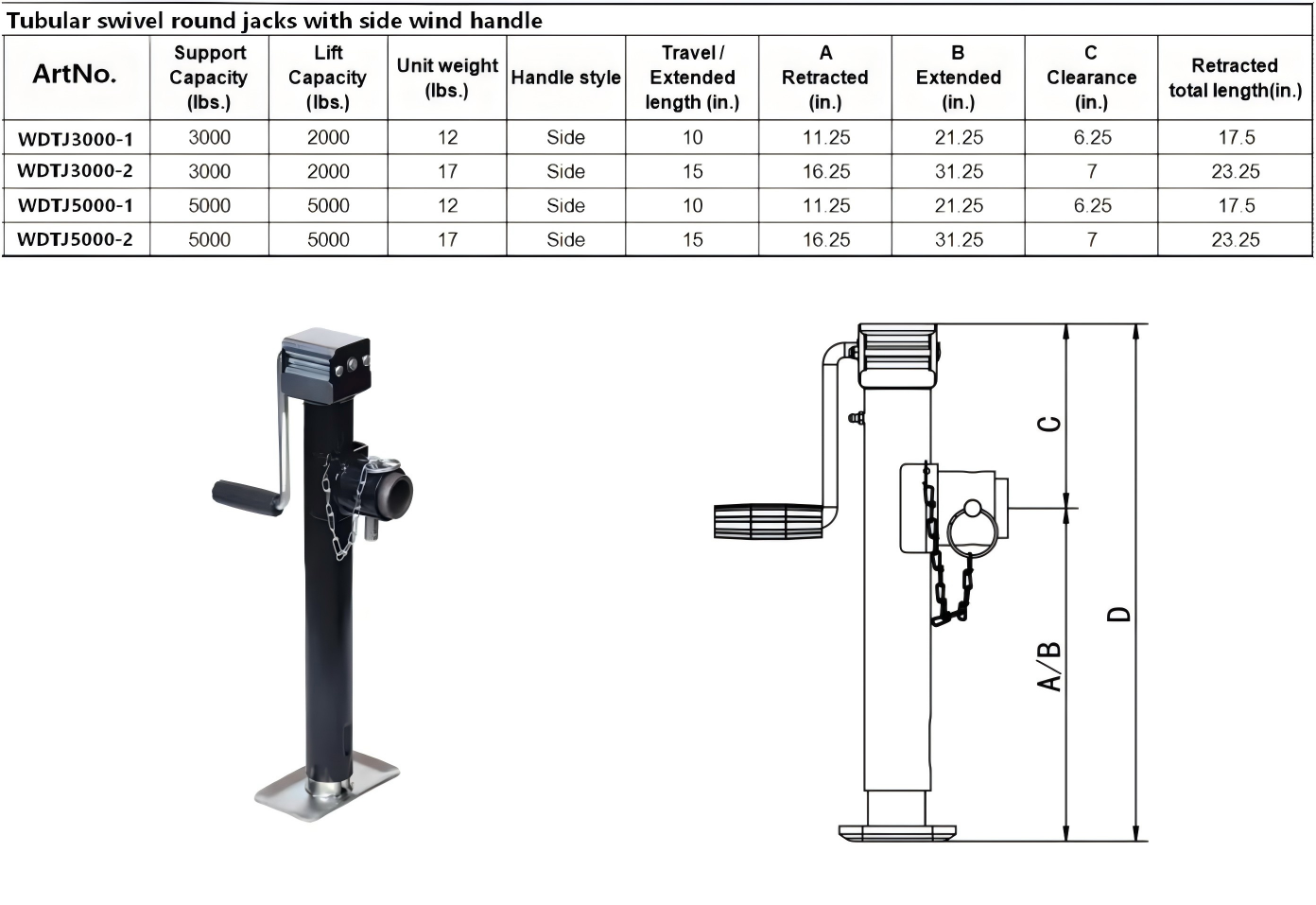

Model Number: WDTJ5000
-
Cautions:
-
1. Do Not Exceed the Rated Capacity
Always ensure that the trailer tongue weight does not exceed the jack’s rated load capacity. Overloading may cause deformation, failure, or safety hazards.
2. Use on Stable Ground
Place the footplate on firm and level ground whenever possible. Soft or uneven surfaces may reduce stability and increase the risk of tipping.
3. Secure the Trailer Before Operation
Before raising or lowering the trailer, apply wheel chocks and ensure the trailer is properly secured to prevent unexpected movement.
4. Lock the Swivel Mechanism Properly
Before towing, make sure the swivel jack is fully rotated into the travel position and securely locked to prevent damage from road contact.
5. Inspect Regularly
Check the jack, mounting bracket, welds, handle, and locking mechanism regularly for signs of wear, corrosion, or damage.
6. Lubricate Moving Parts
Periodically lubricate gears, screws, and pivot points to ensure smooth operation and extend service life.
7. Avoid Sudden Impact Loads
Do not drop the trailer tongue onto the jack or subject it to shock loading, as this may damage internal components.
8. Keep Hands Clear During Operation
Keep fingers, hands, and loose clothing away from moving parts while operating the jack.
9. Do Not Use as a Vehicle Lifting Device
The trailer jack is designed to support and position a trailer tongue only. It should not be used for lifting vehicles or supporting loads beyond its intended purpose.
10. Check Weld-On Mount Integrity
For weld-on models, inspect the welds periodically to ensure a secure attachment to the trailer frame.
