Dutch Standard G4263 Drop Forged Bow Shackle
The Dutch standard G4263 Bow Shackle is a high-strength lifting and rigging accessory designed for connecting slings, chains, wire ropes, and other lifting components safely and efficiently. Manufactured from premium forged alloy or carbon steel and subjected to strict quality control processes, this shackle provides excellent strength, durability, and reliability for demanding industrial applications. Its wide bow-shaped body allows for multi-directional loading and connection of multiple sling legs, making it a versatile choice for construction, transportation, marine, mining, and cargo handling operations.
Structural Features
The G4263 Bow Shackle consists of a robust forged shackle body and a high-strength screw pin or bolt-type pin. The bow design offers a larger internal width compared to a standard D-shackle, allowing greater flexibility when connecting slings, hooks, chains, or wire ropes. The galvanized or powder-coated surface treatment enhances corrosion resistance and extends service life, even in harsh outdoor environments.
Key Advantages
- · High Load Capacity: Manufactured according to recognized industry standards to ensure reliable performance under heavy loads.
- · Durable Construction: Drop-forged steel construction provides superior strength and impact resistance.
- · Versatile Application: Suitable for lifting, towing, rigging, mooring, and cargo securing operations.
- · Corrosion Resistance: Surface coating helps protect against rust and environmental damage.
- · Easy Installation: Simple pin design enables quick assembly and disassembly, reducing downtime during operations.
- · Customizable Options: Various sizes, finishes, and pin configurations are available to meet specific project requirements.
Safety Precautions and Usage Guidelines
To ensure safe operation, always verify that the shackle’s Working Load Limit (WLL) is appropriate for the intended application. Before each use, inspect the shackle for signs of wear, deformation, cracks, corrosion, or damaged threads. Never exceed the rated load capacity or apply side loading unless specifically permitted by the manufacturer.
The pin must be fully engaged and securely tightened before lifting. Avoid shock loading, sudden impacts, or dynamic loading conditions that may exceed the shackle’s design limits. During operation, ensure that the load is properly centered within the bow to distribute force evenly. Shackles showing excessive wear or damage should be removed from service immediately and replaced.
With its dependable performance, rugged construction, and wide range of applications, the G4263 Heavy-Duty Bow Shackle is an essential component for professional lifting and rigging systems where safety and reliability are critical.

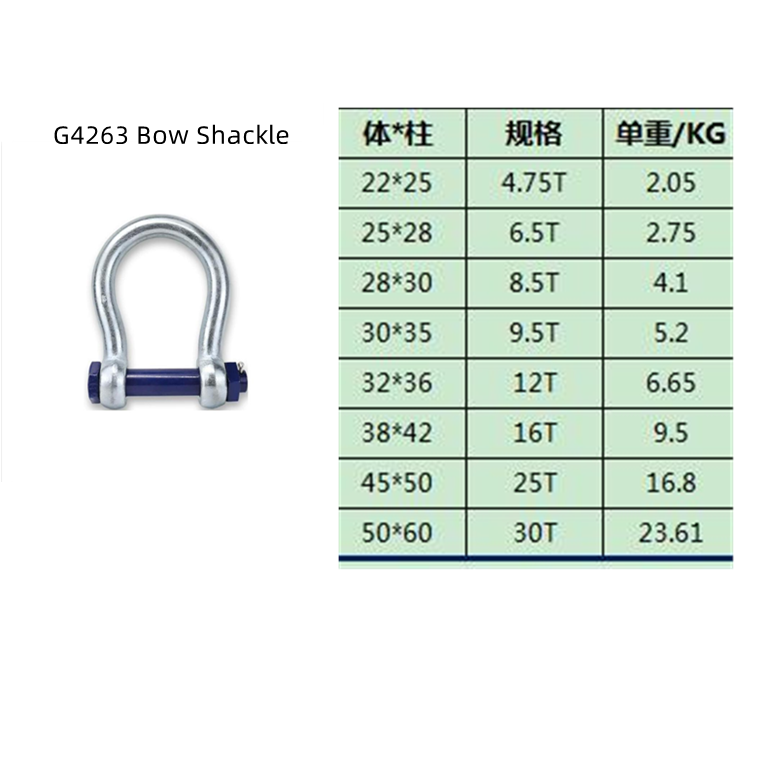

Model Number: G4263 Bow shackle
- Cautions:
-
-
Check Before Use:
Always inspect the shackle for cracks, deformation, excessive wear, or corrosion before each use. -
Verify Load Rating:
Ensure the working load limit (WLL) is clearly marked and sufficient for your intended lifting application. -
Correct Pin Installation:
Make sure the pin is properly threaded and securely seated. Never use a shackle with a loose or mismatched pin. -
Avoid Side Loading:
Bow shackles are designed for in-line loading. Avoid applying loads at angles that may cause bending or twisting. -
Do Not Modify:
Never weld, grind, or modify the shackle in any way. -
Use Proper Fit:
Ensure the shackle fits properly with the chain, sling, or hook and does not restrict movement or create stress concentrations. -
Temperature Limits:
Use the shackle within the specified temperature range provided by the manufacturer, as extreme temperatures may reduce strength. -
Storage and Maintenance:
Store in a dry, clean area and apply lubrication if necessary to prevent rust.
-
Drop forged, Quenched and tempered, with Alloy pins, hot dip galvanized. Max proof load is 2.2 times the working load limt, Min breaking strength is 6 times the WLL.
