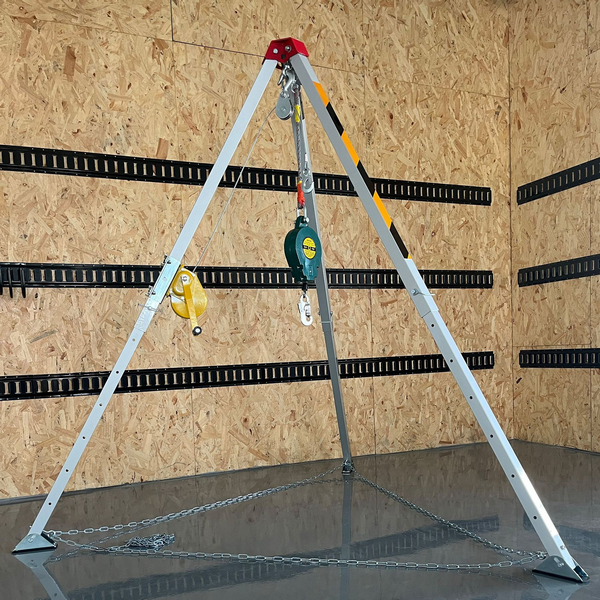

Safety Confined Space Tripod Rescue Winch Adjustable
A Safety Confined Space Tripod Rescue Winch (Adjustable) is a specialized fall-protection and rescue system designed for safely accessing, working in, and rescuing personnel from confined spaces such as manholes, tanks, silos, wells, and underground vaults.
1. Key Components & Design
Tripod Frame (Adjustable Legs)
Made from high-strength aluminum or steel, the tripod has telescoping legs that can be adjusted to fit uneven ground and different entry diameters. It forms a stable anchor point over the confined space opening.
Rescue Winch (Manual or Mechanical)
Mounted at the top or side of the tripod, the winch includes a steel cable or lifeline used to raise or lower workers. It typically features a braking system to prevent accidental free-fall.
Pulley / Head Assembly
Located at the apex, this ensures smooth vertical movement of the cable and proper alignment during lifting or lowering.
Safety Harness Connection
The system connects to a full-body harness worn by the worker, ensuring secure lifting and fall arrest.
2. How It Works
The tripod is positioned over the confined space entry point.
Legs are adjusted for stability and locked in place.
The winch cable is attached to the worker’s harness.
The worker is lowered into or raised out of the space using the winch.
In an emergency, the system allows for quick, controlled rescue without requiring another worker to enter the hazardous space.
3. Safety Features
Self-locking or automatic braking winch to prevent sudden drops
High load capacity (often 300–500 lbs or more depending on model)
Non-slip feet for stability on various surfaces
Corrosion-resistant materials for durability in harsh environments
Compatibility with fall arrest systems and retrieval devices
4.Common Uses
Industrial maintenance (tanks, silos)
Sewer and utility work
Construction and inspection
Emergency rescue operations
Model Number: JY1200985
Application:
