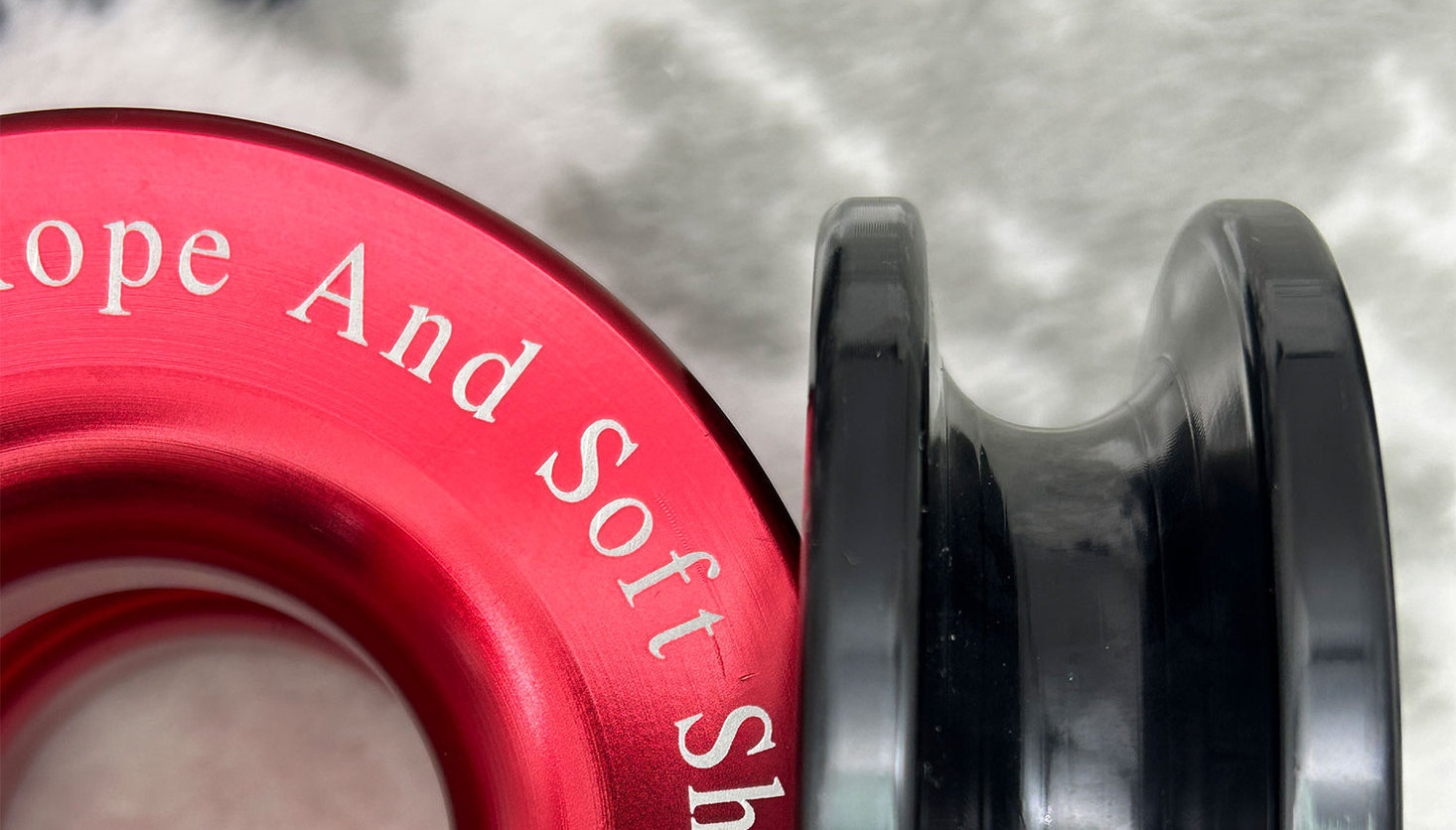

Off-road 4×4 Aluminum Retention Pulley Winch Snatch Recovery Ring

• Product Description

A winch snatch recovery ring is a circular recovery device typically made from high-strength aluminum and designed to be used with synthetic winch ropes. When paired with a soft shackle, the ring functions similarly to a traditional snatch block by allowing the winch line to change direction or create a mechanical advantage.

Unlike conventional snatch blocks that contain moving parts such as pulleys and bearings, recovery rings have a simple design with no moving components. The synthetic rope slides smoothly through the ring during recovery, making the system lighter, simpler, and less prone to mechanical failure.

How It Works

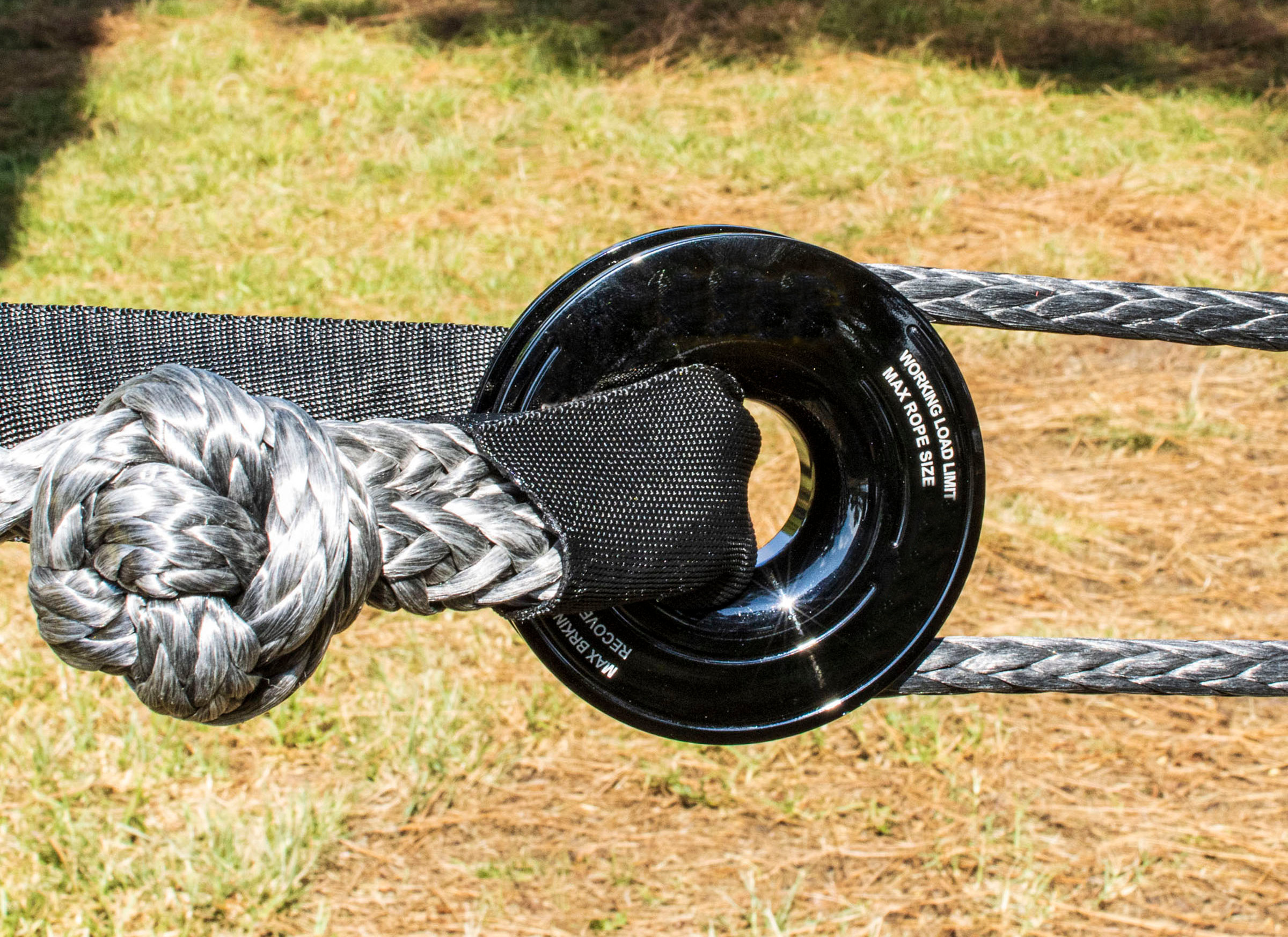

The recovery ring works by redirecting the winch line around the ring, which is anchored to a recovery point such as a tree, rock, or another vehicle.

The typical setup includes:

• A synthetic winch rope

• A soft shackle

• The recovery ring

• A secure anchor point

When the winch pulls the rope through the ring, friction is minimized by the smooth, anodized surface of the ring. This setup allows the user to change the pulling direction or create a double-line pull, effectively doubling the pulling power of the winch while reducing strain on the motor.

Advantages of a Recovery Ring

1. Lightweight Design

Traditional steel snatch blocks can weigh several pounds. Recovery rings, often made from aircraft-grade aluminum, are significantly lighter. This makes them easier to carry and reduces the overall weight of recovery gear.

2. Increased Safety

Steel recovery equipment can become dangerous projectiles if something fails during recovery. Recovery rings used with soft shackles reduce the amount of heavy metal in the system, lowering the risk of injury.

3. Simplicity and Reliability

Because recovery rings contain no moving parts, they are less susceptible to dirt, rust, or mechanical wear. This makes them extremely reliable in harsh off-road conditions such as mud, sand, and water.

4. Compatibility with Synthetic Rope

Recovery rings are specifically designed for synthetic winch lines. The large radius and smooth surface reduce abrasion and heat buildup, helping extend the lifespan of the rope.

5. Compact and Easy to Store

A recovery ring and soft shackle can easily fit into a small gear bag or glove compartment, unlike bulky snatch blocks that require more storage space.

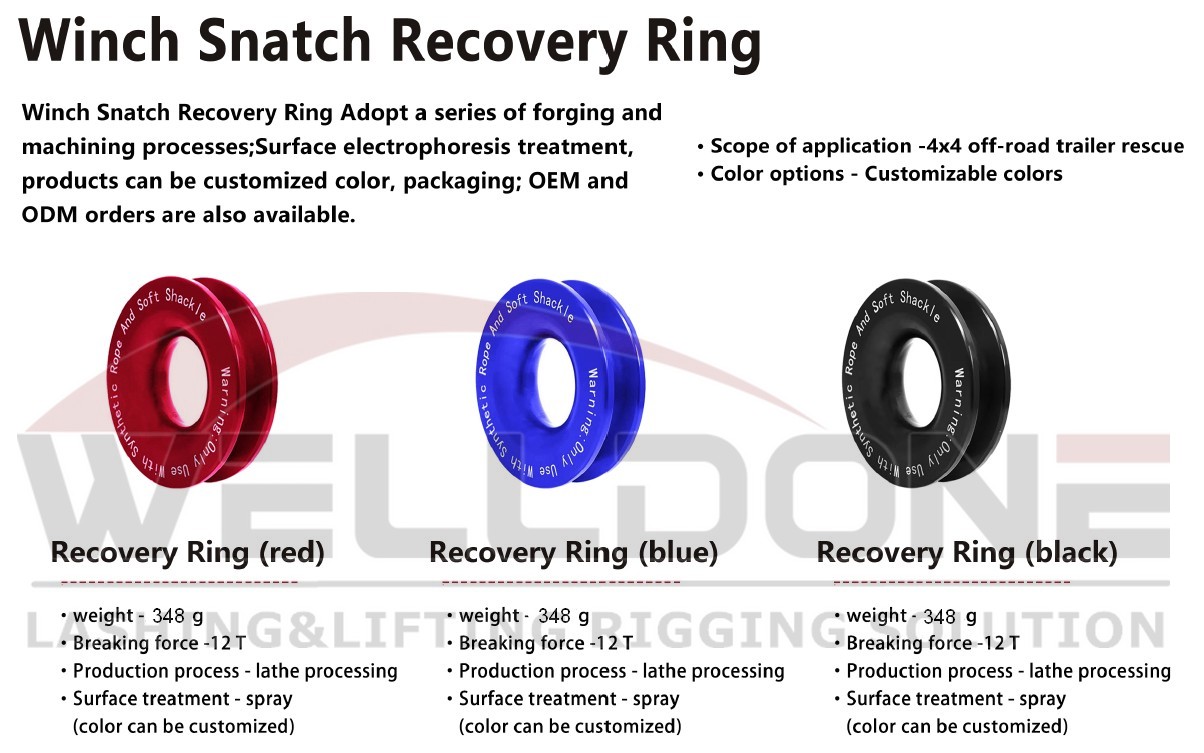

• Specification:

Model Number: WDRR01

• Cautions:

To ensure safe operation, users should follow a few important guidelines:

1. Use only with synthetic winch rope. Steel cable can damage the ring.

2. Inspect equipment before use for cracks, sharp edges, or wear.

3. Use rated soft shackles and ensure all recovery gear has proper load ratings.

4. Avoid shock loading, which can exceed the safe working load.

5. Maintain proper alignment of the rope through the ring to minimize friction.

• Application:

Recovery rings are commonly used in situations such as:

• Pulling a stuck vehicle out of mud or sand

• Changing the winch line direction around obstacles

• Performing a double-line pull for increased power

• Recovering vehicles on steep or uneven terrain
