G80 Bolt and Nut Type Hot DIP Galvanized Bow Shackle

• Product Description

The G80 Bow Shackle is a high-strength, load-rated lifting accessory engineered for secure and reliable performance in heavy-duty lifting and rigging operations. Made from premium Grade 80 alloy steel and heat-treated for enhanced strength and toughness, this bow-type shackle is ideal for applications that require wide sling angles or multi-leg slings.

Materials and Construction

1. Grade 80 alloy steel, quenched and tempered.
2. Bow shape for improved load distribution and multi-directional loading.
3. Powder-coated, painted, or hot-dip galvanized for corrosion protection.
4. Pin Type: Available with screw pin or bolt-type safety pin.

Versatility in Application

1. Widely used in offshore, marine, construction, mining, and transportation industries.

2. Suitable for connecting lifting slings, chains, and other rigging components.

3. Ideal for applications involving side loads or multi-leg sling assemblies.

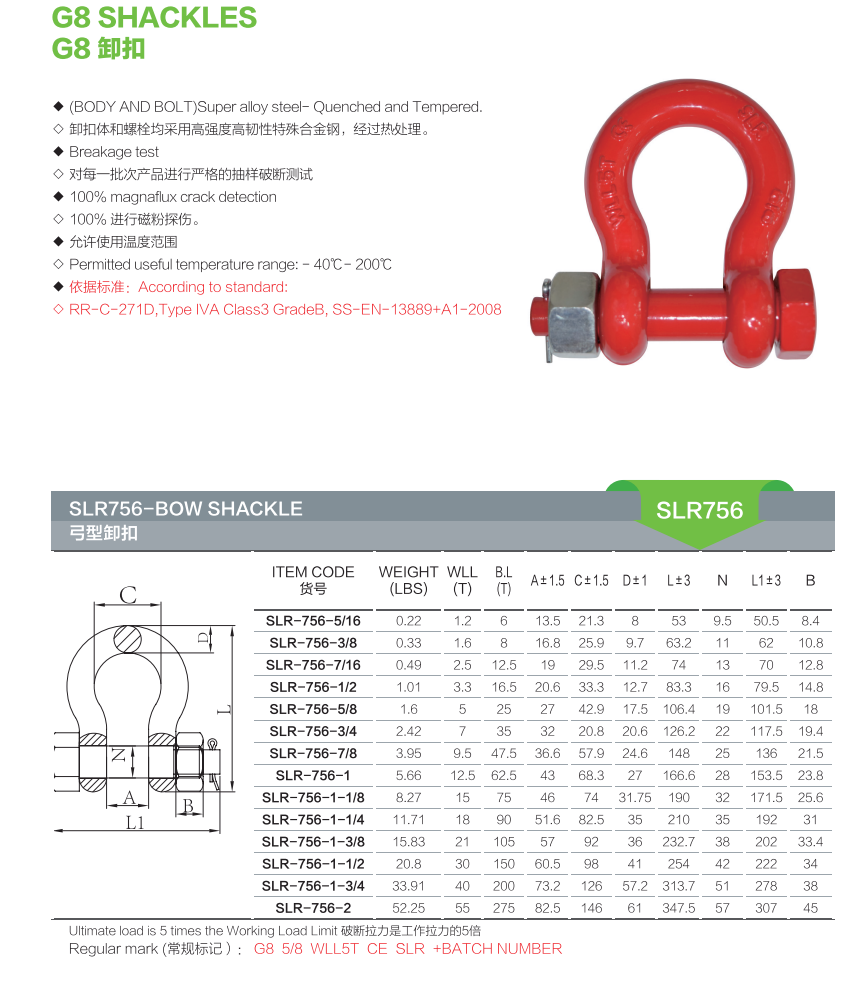

• Specification:

Model Number: G80 Bow shackle

• Cautions:

  1. Check Before Use:
     Always inspect the shackle for cracks, deformation, excessive wear, or corrosion before each use.

  2. Verify Load Rating:
     Ensure the working load limit (WLL) is clearly marked and sufficient for your intended lifting application.

  3. Correct Pin Installation:
     Make sure the pin is properly threaded and securely seated. Never use a shackle with a loose or mismatched pin.

  4. Avoid Side Loading:
     Bow shackles are designed for in-line loading. Avoid applying loads at angles that may cause bending or twisting.

  5. Do Not Modify:
     Never weld, grind, or modify the shackle in any way.

  6. Use Proper Fit:
     Ensure the shackle fits properly with the chain, sling, or hook and does not restrict movement or create stress concentrations.

  7. Temperature Limits:
     Use the shackle within the specified temperature range provided by the manufacturer, as extreme temperatures may reduce strength.

  8. Storage and Maintenance:
     Store in a dry, clean area and apply lubrication if necessary to prevent rust.

• Application:

• Process & Packing

Drop forged, Quenched and tempered, with Alloy pins, hot dip galvanized. Max proof load is 2.2 times the working load limt, Min breaking strength is 6 times the WLL.
