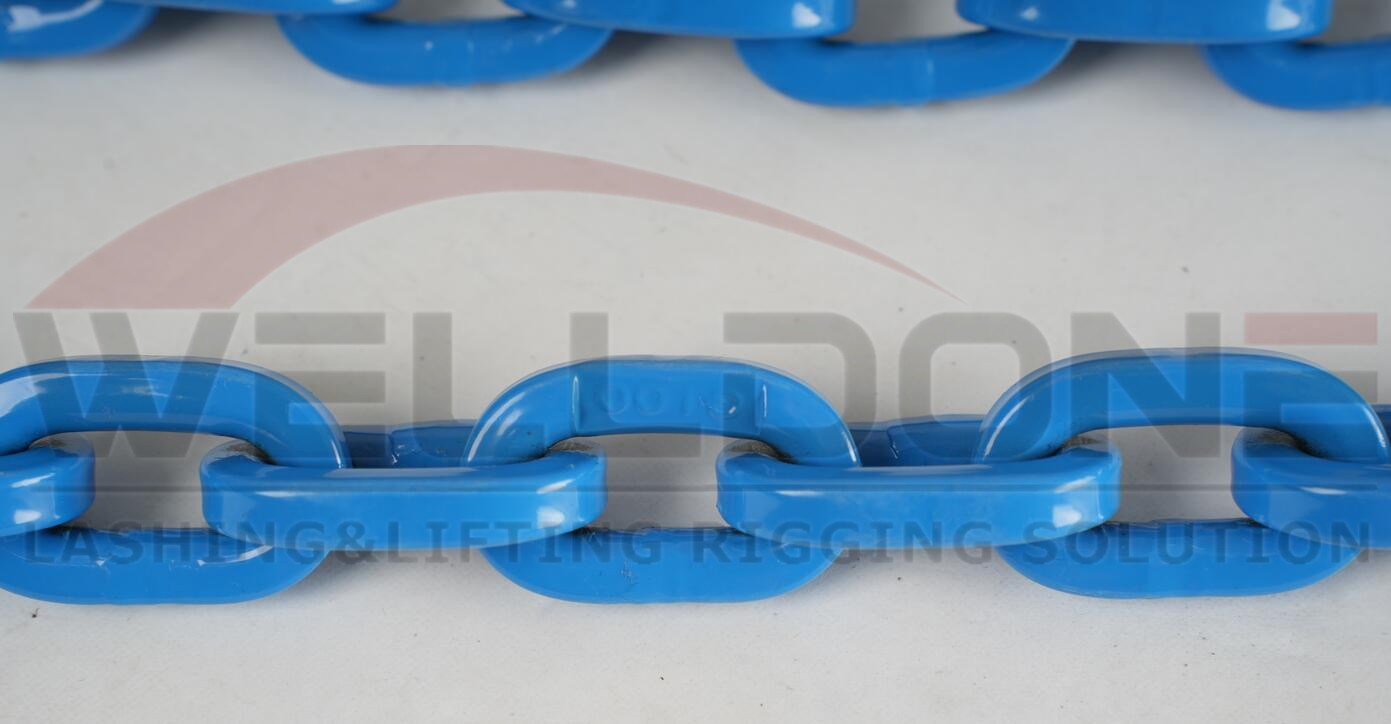

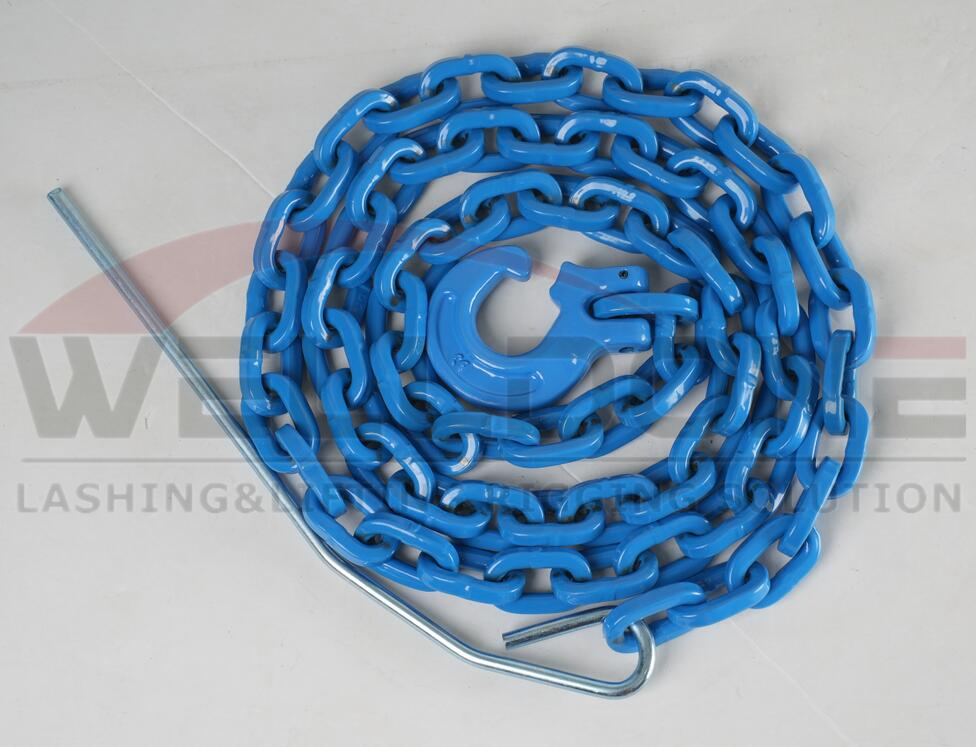

G100 Grade100 Alloy Steel D Shape Link Square Forestry Chain for Logging
The G100 Square Forestry Chain is engineered for the most demanding logging and timber handling operations. Manufactured from premium-grade alloy steel, this chain offers superior strength, durability, and wear resistance, making it ideal for use in forestry applications that require high performance and safety.
Key Features:
1.Grade 100 Alloy Steel:
Offers up to 25% higher working load limit than Grade 80 chains, ensuring maximum strength for heavy-duty forestry use.
2.Square Link Design:
Reduces wear and tear on sprockets and bars while improving grip and traction during timber skidding or hauling.
3.Heat Treated & Quenched:
For enhanced toughness and long service life under extreme conditions.
4.Corrosion-Resistant Finish:
Suitable for use in harsh outdoor environments.
Safety – First Design:
The chain is designed with a safety factor of 5 times, which is much higher than the 4 – times safety factor of G80 chains. This high safety factor provides an extra layer of protection, reducing the likelihood of accidents due to chain breakage. The square – link design of the G100 chain offers enhanced stability and security. The square shape of the links interlocks more effectively than traditional round – link chains, preventing accidental disengagement and ensuring a more secure connection when used in forestry operations.
Surface Finish:
G100 chains are available with different surface finishes, such as black oxide and black painted. The black oxide finish provides a layer of corrosion resistance, protecting the chain from rust and oxidation, which is particularly important in the damp and humid environment of forests. The black painted finish not only offers corrosion protection but also helps to reduce visibility in certain forestry operations, minimizing the risk of the chain being snagged on branches or other obstacles.

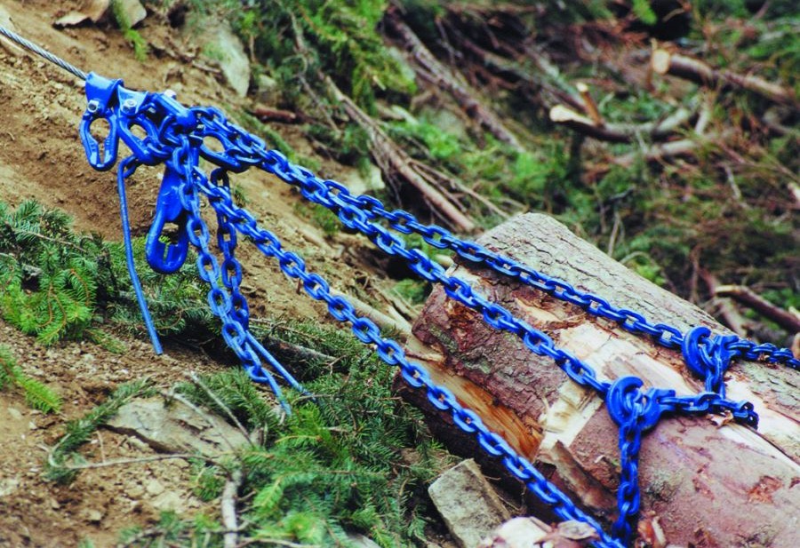

Applications:
1.Logging and timber skidding
2.Forestry machinery
3.Winch and drag operations
4.General heavy-duty outdoor applications
Model Number: G100 Square Forestry Chain
-
Cautions:
1.Do Not Exceed Working Load Limit (WLL):
Always use the chain within its rated capacity. Overloading may result in chain failure, injury, or equipment damage.
2.Inspect Before Each Use:
Check for signs of wear, deformation, cracks, corrosion, or elongation. Remove the chain from service if any damage is found.
3.Do Not Use for Overhead Lifting:
This chain is designed for forestry and pulling applications only. It must not be used for lifting or hoisting people or loads overhead.
4.Use Compatible Components:
Ensure all hooks, connectors, and equipment used with the chain are properly rated and compatible with Grade 100 standards.
5.Avoid Shock Loading:
Do not subject the chain to sudden force or jerking loads, as this may cause unexpected failure.
-
Application:
