4″ Double L Track Sliding Winch for Flatbed Trailer

• Product Description

A Double “L” Track Sliding Winch is an essential component in the cargo securement systems of flatbed trailers, offering flexibility, efficiency, and robust performance. Designed to slide along a specially designed “Double L” winch track, these winches can be positioned precisely where needed, ensuring optimal tensioning and securement of various types of cargo.

Key Features and Benefits

1. Versatile Positioning: The sliding mechanism allows operators to move the winch along the length of the trailer, providing the ability to adjust tie-down points according to the specific dimensions and requirements of the load. This adaptability enhances the securement process, accommodating a wide range of cargo sizes and shapes.
2. Robust Construction: Manufactured from high-strength, heat-treated steel, Double “L” Track Sliding Winches are built to withstand the rigors of heavy-duty use. For instance, Multiprens’ Double “L” Sliding Winch is constructed from 8 mm heat-treated high-strength steel and features an electrostatic powder coating for enhanced durability.
3. High Working Load Limit (WLL): These winches are engineered to handle substantial loads, with many models offering a WLL of up to 5,500 lbs. This capacity ensures that heavy cargo can be secured safely and reliably during transit.
4. Corrosion Resistance: To combat environmental factors and extend service life, many winches are finished with durable coatings. For example, Ancra’s Storable Double “L” Track 7-mm Sliding Web Winch features a black powder coat finish that has been tested to withstand up to 250 hours of standard salt spray, providing excellent resistance to rust and corrosion.
5. Ease of Use: Some models incorporate user-friendly features such as ratcheting mechanisms, which facilitate quicker and more efficient tensioning. Ancra’s Ratcheting Double “L” Track 7-mm Sliding Web Winch, for instance, is designed to reduce tensioning time by up to 33% and minimize the risk of winch bar rollover, enhancing both safety and productivity.

Installation and Compatibility

Proper installation of the Double “L” winch track is crucial for the effective operation of sliding winches. Tracks must be securely attached to the trailer’s structural members, with fasteners placed at each cross member, typically at maximum 24-inch centers. This ensures that the track can support the dynamic forces exerted during cargo securement. Kinedyne provides detailed guidelines for installing their Aluminum Double “L” Winch Track, emphasizing the importance of correct positioning and fastening to maintain system integrity.

Safety and Compliance

Adherence to safety standards and regulations is paramount in cargo securement. Reputable manufacturers design their winches to meet or exceed standards set by organizations such as the U.S. Department of Transportation (DOT), the Web Sling and Tie Down Association (WSTDA), and the Commercial Vehicle Safety Alliance (CVSA). For example, Multiprens’ winches comply with DOT, WSTDA-T3, and Canadian Standard 905 regulations, ensuring they meet rigorous safety and performance criteria.

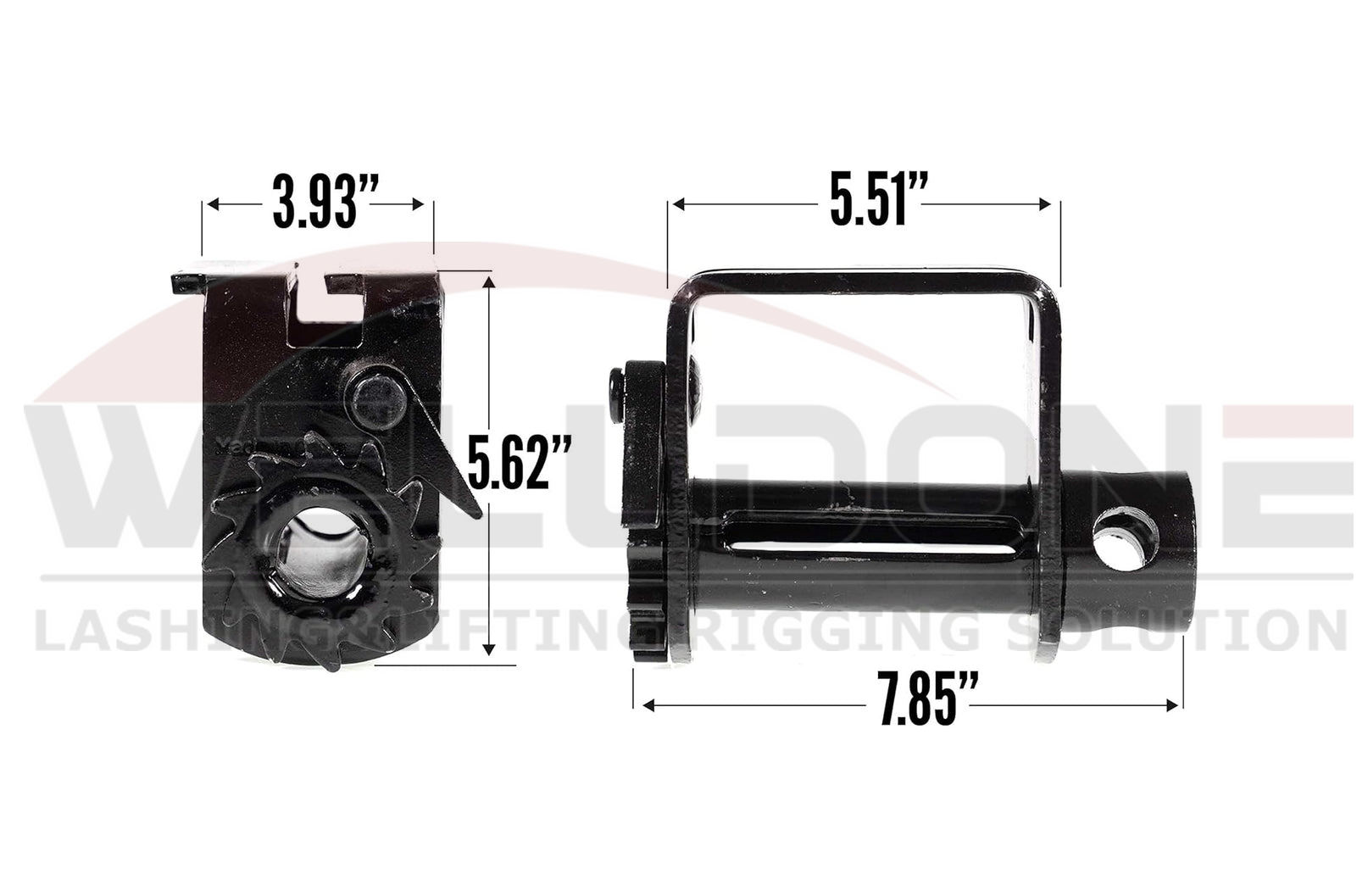

• Specification:

Model Number: TW452

• Cautions:

1. Weight Limit: Always adhere to the weight limits specified by the manufacturer for the winch. Overloading can cause equipment failure and accidents.
2. Secure Mounting: Ensure that the winch is securely mounted to the flatbed with appropriate hardware and that the mounting structure is strong enough to handle the forces that will be exerted on it.
3. Proper Anchoring: Use proper anchor points and make sure they are securely attached to the load being winched. The anchor points should be strong enough to handle the force applied by the winch.

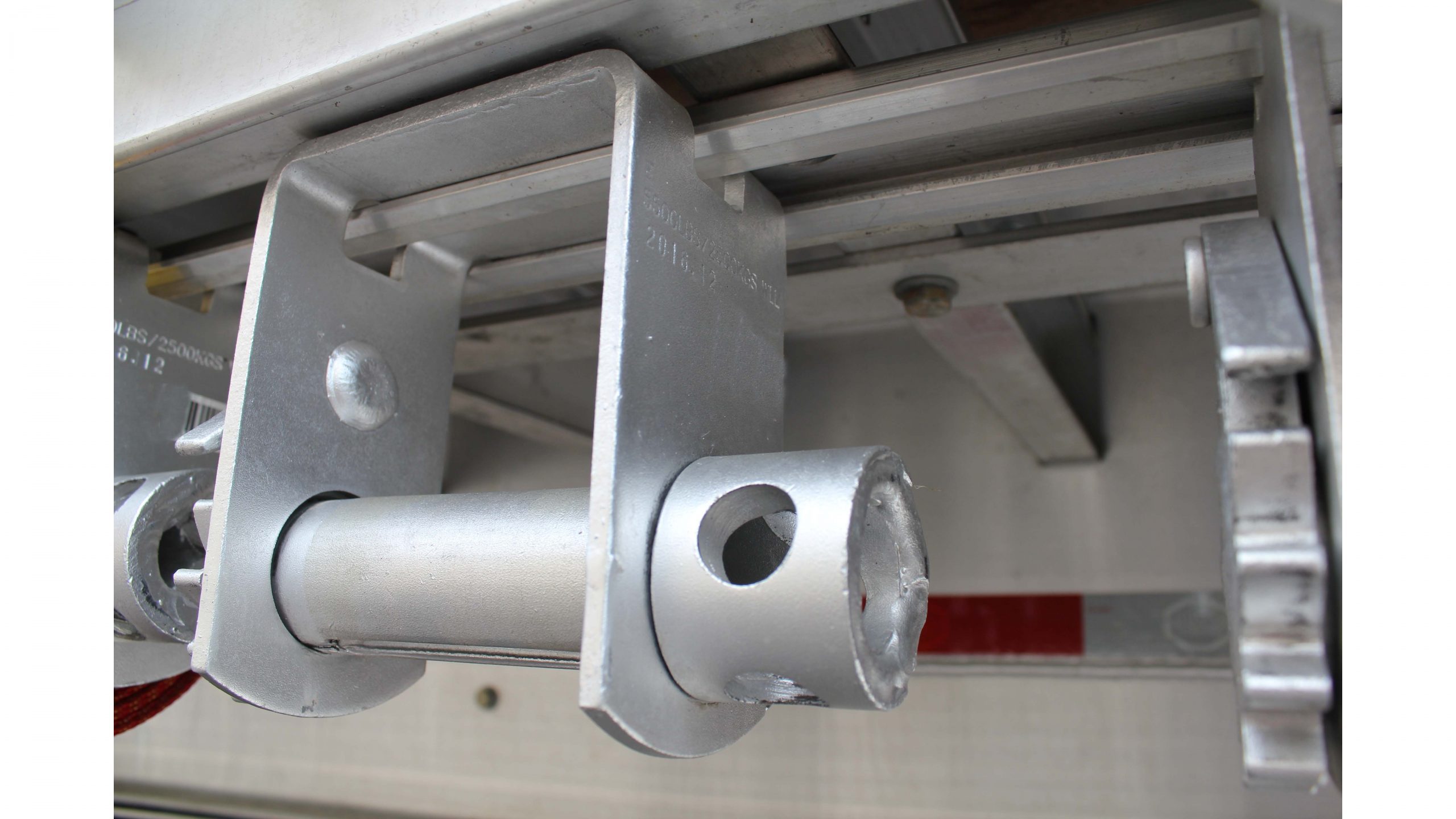

• Application:

• Process & Packing
